Chenbo Rubber and Plastic Technology (Hebei) Co., Ltd
6 Years
| Ask Lasest Price | |
| Brand Name : | thompson |
| Model Number : | DA300 |
| Price : | negotiable |
| Delivery Time : | 15-20 working days |
| Certification : | ISO9001 |

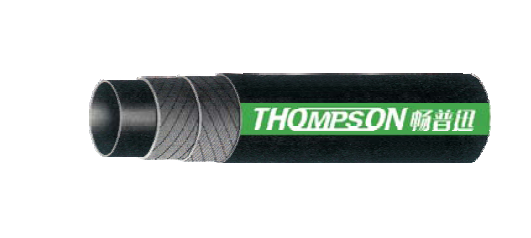

1/2 Inch 20 Bar 300 PSI Hydraulic Textile Braid Hoses Low Pressure Heavy-Duty Air Equipment Hose
Application: For transmission of hot water ,compressor air and inert gases
Temperature: -40℃~+1500℃(-40°F~+302°F)
Inner tube: Black smooth synthetic rubber
Reinforcement: High tensile cord
Cover: Black ,ozone ,aging and abrasion resistant rubber compound
| Item no. | I.D. | O.D. | W.P. | B.P. | Min.Bend Radius | Weight | Length | |||
| # | inch | mm | mm | Bar | psi | Bar | psi | mm | kg/m | m |
| DW 300-006 | 1/4 | 6 | 14.6 | 20 | 300 | 60 | 900 | 63 | 0.186 | 50 |
| DW 300-008 | 5/16 | 8 | 16.5 | 20 | 300 | 60 | 900 | 80 | 0.222 | 50 |
| DW 300-010 | 3/8 | 10 | 18.1 | 20 | 300 | 60 | 900 | 100 | 0.251 | 50 |
| DW 300-013 | 1/2 | 13 | 21.4 | 20 | 300 | 60 | 900 | 130 | 0.311 | 50 |
| DW 300-016 | 5/8 | 16 | 25.3 | 20 | 300 | 60 | 900 | 160 | 0.398 | 50 |
| DW 300-019 | 3/4 | 19 | 31.6 | 20 | 300 | 60 | 900 | 190 | 0.632 | 50 |
| DW 300-025 | 1 | 25 | 35.3 | 20 | 300 | 60 | 900 | 150 | 0.758 | 60 |
| DW 300-032 | 1 1/4 | 32 | 42.3 | 20 | 300 | 60 | 900 | 200 | 0.931 | 60 |
| DW 300-035 | 1 3/8 | 35 | 45.3 | 20 | 300 | 60 | 900 | 250 | 1.105 | 60 |
| DW 300-038 | 1 1/2 | 38 | 48.3 | 20 | 300 | 60 | 900 | 250 | 1.079 | 60 |
| DW 300-045 | 1 3/4 | 45 | 55.6 | 20 | 300 | 60 | 900 | 300 | 1.361 | 60 |
| DW 300-051 | 2 | 51 | 61.8 | 20 | 300 | 60 | 900 | 300 | 1.541 | 60 |
| DW 300-060 | 2 3/8 | 60 | 69.4 | 20 | 300 | 60 | 900 | 380 | 1.55 | 60 |
| DW 300-063 | 2 1/2 | 63 | 74.4 | 20 | 300 | 60 | 900 | 380 | 1.922 | 60 |
| DW 300-070 | 2 3/4 | 70 | 81.4 | 20 | 300 | 60 | 900 | 450 | 2.114 | 60 |
| DW 300-076 | 3 | 76 | 87.8 | 20 | 300 | 60 | 900 | 450 | 2.473 | 60 |
| DW 300-080 | 3 3/16 | 80 | 91.8 | 20 | 300 | 60 | 900 | 480 | 2.593 | 60 |
| DW 300-090 | 3 1/2 | 90 | 101.8 | 20 | 300 | 60 | 900 | 550 | 2.889 | 60 |
| DW 300-102 | 4 | 102 | 114.2 | 20 | 300 | 60 | 900 | 600 | 3.503 | 60 |
| DW 300-127 | 5 | 127 | 143.8 | 20 | 300 | 60 | 900 | 750 | 5.513 | 30 |
| DW 300-152 | 6 | 152 | 172.6 | 20 | 300 | 60 | 900 | 900 | 8 | 30 |
| DW 300-203 | 8 | 204 | 230.4 | 20 | 300 | 60 | 900 | 1400 | 13.53 | 15 |
|
|
