    EN 857 1SC Jet Wash Hose

    Ask Lasest Price
    Brand Name : thompson
    Price : negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 80,000 meter per month
    Delivery Time : 15-20 working days
    • Product Details
    • Company Profile

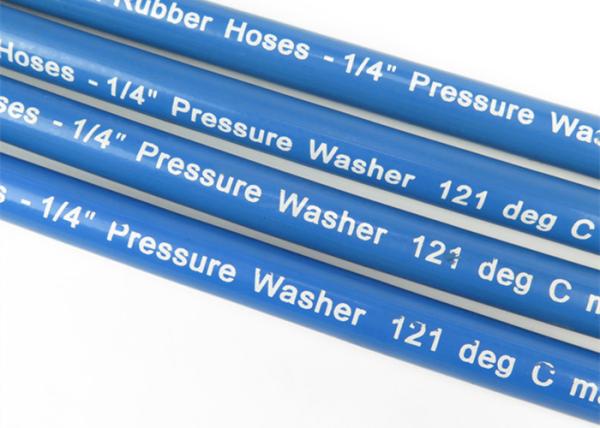

    EN 857 1SC Jet Wash Hose

    2020 Good Reputation Car Washing Machine Washer Hose/Jet Wash High Pressure Rubber Hose

    Tube: Temperature resistant synthetic rubber

    Reinforcement: One or two high tensile steel wire braid

    Cover: Abrasion and weather resistant synthetic rubber

    Temperature range: -40°C to +150°C

    EN 857 1SC Jet Wash Hose

    Place of Origin:
    Hebei, China
    Brand Name:
    Thompson
    Model Number:
    EN 857 1SC,SAE 100R17, ISO 11237-1SC
    Name:
    WIRE BRAID HYDRAULIC RUBBER HOSE
    Tube:
    Oil resistant synthetic rubber
    Reinforcement:
    ONE STEEL WIRE BRAID
    Application:
    Hydraulic oil,air and water glycol,minerals oils,emulsion etc
    Working temperature:
    -40℃~+100℃
    Length:
    50m,100m/roll
    Standard:
    EN,ISO,SAE
    Inner Diameter:
    1/4''~1''
    Printing Words:
    Customized
    Processing Service:
    OEM

    1SC

    Product Code

    Hose Size I.D.

    Hose O.D.

    Maximum Working Pressure

    Minimum Burst Pressure

    Minimum Bend Radius

    Weight

    DN mm inch mm MPa psi MPa psj mm kg/m
    JW1B04 6 6.4 1/4 12.7 25 3600 90 13050 100 0.220
    JW1B05 8 7.9 5/16 14.4 25 3600 85 12325 115 0.260
    JW1B06 10 9.5 3/8 16.5 25 3600 82 11890 130 0.335
    JW1B08 12 12.7 1/2 19.5 25 3600 70 10150 180 0.410
    JW2B04 6 6.4 1/4 14.3

    40

    5800 160 23200 100 0.380
    JW2B05 8 7.9 5/16 16.2 40 5800 140 20300 115 0.435
    JW2B06 10 9.5 3/8 18.3 40 5800 130 18850 130 0.550
    JW2B08 12 12.7 1/2 21.3 40 5800 120 17400 180 0.640

    2SC
    Product Code

    Hose Size I.D.

    Hose O.D.

    Maximurrf Working Pressure

    Minimum Burst Pressure

    Minimum Bend Radius

    Weight

    DN mm inch mm MPa psi MPa psi mm kg/m
    JW1C04 6 6.4 1/4 11.7 25 3600 90 13050 50 0.180
    JW1C05 8 7.9 5/16 13.4 25 3600 85 12325 55 0.200
    JW1C06 10 9.5 3/8 15.1 25 3600 82 11890 60 0.260
    JW1C08 12 12.7 1/2 18.1 25 3600 70 10150 70 0.345
    JW2C04 6 6.4 1/4 13.1 40 5800 160 23200 50 0.285
    JW2C05 8 7.9 5/16 14.8 40 5800 140 20300 55 0.335
    JW2C06 10 9.5 3/8 16.5 40 5800 130 18850 65 0.420
    JW2C08 12 12.7 1/2 19.5 40 5800 120 17400 80 0.575

    EN 857 1SC Jet Wash Hose

    Appilcation for Jet Wash Hose :

    EN 857 1SC Jet Wash Hose
