| Brand Name : | thompson |
| Model Number : | SO 300 |
| Price : | negotiable |
| Supply Ability : | 80,000 meter per month |
| Delivery Time : | 15-20 working days |

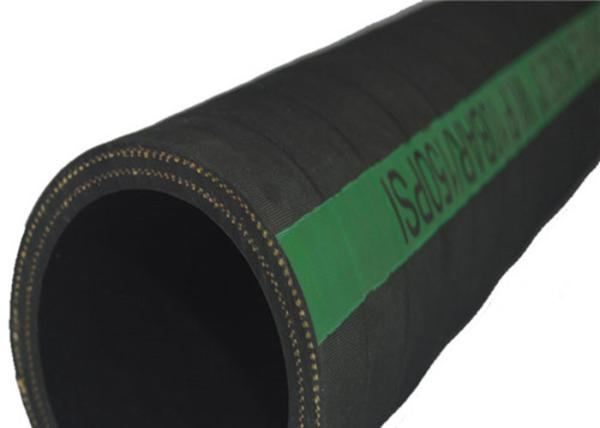

6 Inch / 8 Inch Large Diameter Flexible Suction Water Hose / Oil Suction Hose With W. P. 10 / 17 / 20 Bar
Application: Draw and delivery of petroleum based products up to 30% aromatic
content.
Inner tube:Black smooth synthetic rubber
Reinforcement: High tensile cord and helix steel wire
Cover: Black ,ozone ,oil and aging resistant rubber compound
| Item no. | I.D. | O.D. | W.P. | B.P. | Min.Bend Radius | Weight | Length | |||
| # | inch | mm | mm | Bar | psi | Bar | psi | mm | kg/m | m |
| SO 300-019 | 3/4 | 19 | 29.4 | 20 | 300 | 60 | 900 | 120 | 0.68 | 60 |
| SO 300-025 | 1 | 25 | 35.5 | 20 | 300 | 60 | 900 | 150 | 0.85 | 60 |
| SO 300-032 | 1 1/4 | 32 | 43.4 | 20 | 300 | 60 | 900 | 200 | 1.16 | 60 |
| SO 300-035 | 1 3/8 | 35 | 46.2 | 20 | 300 | 60 | 900 | 250 | 1.23 | 60 |
| SO 300-038 | 1 1/2 | 38 | 49.5 | 20 | 300 | 60 | 900 | 250 | 1.36 | 60 |
| SO 300-045 | 1 3/4 | 45 | 56.7 | 20 | 300 | 60 | 900 | 300 | 1.62 | 60 |
| SO 300-051 | 2 | 51 | 63 | 20 | 300 | 60 | 900 | 350 | 1.85 | 60 |
| SO 300-060 | 2 3/8 | 60 | 75.2 | 20 | 300 | 60 | 900 | 380 | 2.60 | 60 |
| SO 300-063 | 2 1/2 | 63 | 78.2 | 20 | 300 | 60 | 900 | 380 | 2.65 | 60 |
| SO 300-070 | 2 3/4 | 70 | 85.2 | 20 | 300 | 60 | 900 | 450 | 3.03 | 60 |
| SO 300-076 | 3 | 76 | 91.4 | 20 | 300 | 60 | 900 | 450 | 3.43 | 60 |
| SO 300-080 | 3 3/16 | 80 | 96 | 20 | 300 | 60 | 900 | 500 | 3.66 | 60 |
| SO 300-090 | 3 1/2 | 90 | 106.4 | 20 | 300 | 60 | 900 | 550 | 4.01 | 60 |
| SO 300-102 | 4 | 102 | 118.4 | 20 | 300 | 60 | 900 | 600 | 5.31 | 60 |
| SO 300-127 | 5 | 127 | 145.4 | 20 | 300 | 60 | 900 | 750 | 6.68 | 30 |
| SO 300-152 | 6 | 152 | 171.4 | 20 | 300 | 60 | 900 | 900 | 8.72 | 30 |
| SO 300-203 | 8 | 204 | 227 | 20 | 300 | 60 | 900 | 1150 | 15.80 | 15 |
|
|
